VACON® 100 FLOW

FC103 is dedicated to controlling compressors, pumps and fans for significant energy savings in refrigeration plants.

Categories: ,

Description

Dedicated functionality for pumps, fans and compressors

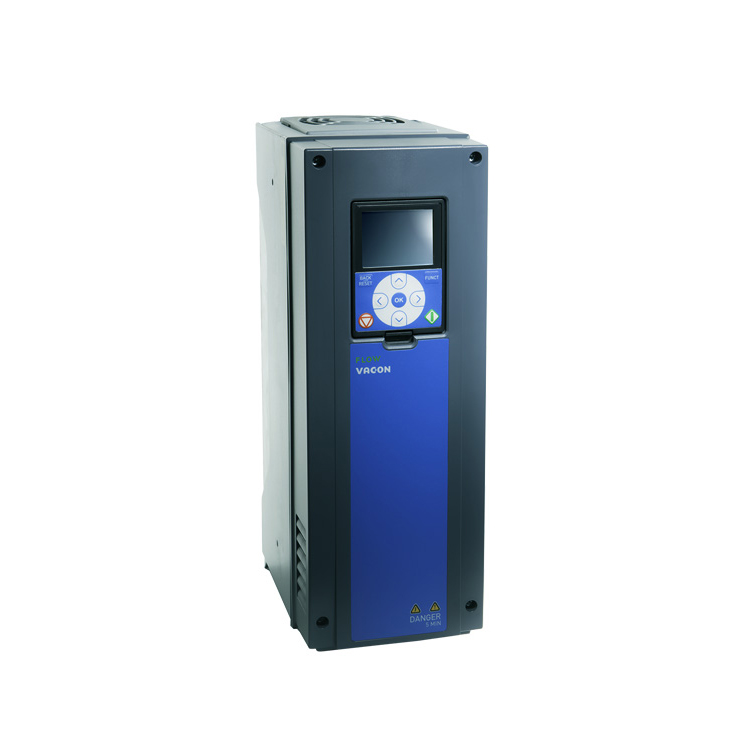

VACON® 100 FLOW is an AC drive that is dedicated to improving flow control and saving energy in industrial pump and fan applications.

Specifically designed features include Multipump solutions and application selection menus. They enhance pump performance and protect pipes and equipment to ensure reliable operation. Standard PID control uses a sensor to control pump speed instead of an external controller. This helps the drive to quickly react to fluctuations in demand for accurate process control and optimized energy savings.

Power range and supply voltages

  • 3 x 208-240 V…0.55-90 kW
  • 3 x 380-500 V…1.1-630 kW
  • 3 x 525-690 V…5.5-800 kW

Features and benefits

Fast and efficient system integration thanks to dedicated functionality for pump, fan and compressor applications

Extended drive lifetime and minimized lifecycle costs due to electrolytic-free DC link capacitors

Easy commissioning and start-up as a result of graphical keypad and wizard guides

Efficient integration into automation systems thanks to built-in Ethernet and RS485 communication

3D models and drawings

Type Name Updated Download File type
M-Drawing – MD MCAD VACON 100 Flange Mounting MR4 IP54 01 Aug, 2018 2.2 MB ZIP
M-Drawing – MD MCAD VACON 100 Flange Mounting MR5 IP54 01 Aug, 2018 2.5 MB ZIP
M-Drawing – MD MCAD VACON 100 Flange Mounting MR6 IP54 01 Aug, 2018 2.9 MB ZIP
M-Drawing – MD MCAD VACON 100 Flange Mounting MR7 IP54 01 Aug, 2018 2.5 MB ZIP
M-Drawing – MD MCAD VACON 100 Flange Mounting MR8 IP00 01 Aug, 2018 908.2 KB ZIP
M-Drawing – MD MCAD VACON 100 Flange Mounting MR9 IP00 01 Aug, 2018 668.4 KB ZIP
M-Drawing – MD MCAD VACON 100 Main Switch MR4 IP54
M-Drawing – MD MCAD VACON 100 Main Switch MR4 IP54 01 Dec, 2016 2.2 MB ZIP
M-Drawing – MD MCAD VACON 100 Main Switch MR4 IP54 01 Dec, 2016 2.6 MB DXF
M-Drawing – MD MCAD VACON 100 Main Switch MR4 IP54 01 Dec, 2016 209.9 KB PDF
M-Drawing – MD MCAD VACON 100 Main Switch MR5 IP54
M-Drawing – MD MCAD VACON 100 Main Switch MR5 IP54 01 Dec, 2016 2.3 MB ZIP
M-Drawing – MD MCAD VACON 100 Main Switch MR5 IP54 01 Dec, 2016 2.5 MB DXF
M-Drawing – MD MCAD VACON 100 Main Switch MR5 IP54 01 Dec, 2016 167.9 KB PDF
M-Drawing – MD MCAD VACON 100 Main Switch MR6 IP54
M-Drawing – MD MCAD VACON 100 Main Switch MR6 IP54 01 Dec, 2016 2.0 MB ZIP
M-Drawing – MD MCAD VACON 100 Main Switch MR6 IP54 01 Dec, 2016 2.7 MB DXF
M-Drawing – MD MCAD VACON 100 Main Switch MR6 IP54 01 Dec, 2016 170.0 KB PDF
M-Drawing – MD MCAD VACON 100 Main Switch MR7 IP54
M-Drawing – MD MCAD VACON 100 Main Switch MR7 IP54 01 Dec, 2016 1.5 MB ZIP
M-Drawing – MD MCAD VACON 100 Main Switch MR7 IP54 01 Dec, 2016 3.8 MB DXF
M-Drawing – MD MCAD VACON 100 Main Switch MR7 IP54 01 Dec, 2016 146.9 KB PDF
M-Drawing – MD MCAD VACON 100 MR10 IP00
M-Drawing – MD MCAD VACON 100 MR10 IP00 01 Dec, 2016 877.8 KB DXF
M-Drawing – MD MCAD VACON 100 MR10 IP00 01 Dec, 2016 665.6 KB DXF
M-Drawing – MD MCAD VACON 100 MR10 IP00 01 Dec, 2016 716.2 KB PDF
M-Drawing – MD MCAD VACON 100 MR4 IP54
M-Drawing – MD MCAD VACON 100 MR4 IP54 01 Dec, 2016 1.8 MB ZIP
M-Drawing – MD MCAD VACON 100 MR4 IP54 01 Dec, 2016 9.3 MB DXF
M-Drawing – MD MCAD VACON 100 MR4 IP54 01 Dec, 2016 13.9 MB DXF
M-Drawing – MD MCAD VACON 100 MR4 IP54 01 Dec, 2016 570.4 KB PDF
M-Drawing – MD MCAD VACON 100 MR5 IP54
M-Drawing – MD MCAD VACON 100 MR5 IP54 01 Dec, 2016 1.9 MB ZIP
M-Drawing – MD MCAD VACON 100 MR5 IP54 01 Dec, 2016 8.9 MB DXF
M-Drawing – MD MCAD VACON 100 MR5 IP54 01 Dec, 2016 13.9 MB DXF
M-Drawing – MD MCAD VACON 100 MR5 IP54 01 Dec, 2016 576.2 KB PDF
M-Drawing – MD MCAD VACON 100 MR6 IP54
M-Drawing – MD MCAD VACON 100 MR6 IP54 01 Dec, 2016 1.7 MB ZIP
M-Drawing – MD MCAD VACON 100 MR6 IP54 01 Dec, 2016 9.3 MB DXF
M-Drawing – MD MCAD VACON 100 MR6 IP54 01 Dec, 2016 14.6 MB DXF
M-Drawing – MD MCAD VACON 100 MR6 IP54 01 Dec, 2016 582.7 KB PDF
M-Drawing – MD MCAD VACON 100 MR7 IP54
M-Drawing – MD MCAD VACON 100 MR7 IP54 01 Dec, 2016 1.2 MB ZIP
M-Drawing – MD MCAD VACON 100 MR7 IP54 01 Dec, 2016 3.8 MB DXF
M-Drawing – MD MCAD VACON 100 MR7 IP54 01 Dec, 2016 3.8 MB DXF
M-Drawing – MD MCAD VACON 100 MR7 IP54 01 Dec, 2016 585.3 KB PDF
M-Drawing – MD MCAD VACON 100 MR8 IP00
M-Drawing – MD MCAD VACON 100 MR8 IP00 01 Dec, 2016 687.9 KB ZIP
M-Drawing – MD MCAD VACON 100 MR8 IP00 01 Dec, 2016 4.4 MB DXF
M-Drawing – MD MCAD VACON 100 MR8 IP00 01 Dec, 2016 6.4 MB DXF
M-Drawing – MD MCAD VACON 100 MR8 IP00 01 Dec, 2016 985.0 KB PDF
M-Drawing – MD MCAD VACON 100 MR8 IP54
M-Drawing – MD MCAD VACON 100 MR8 IP54 01 Dec, 2016 421.5 KB ZIP
M-Drawing – MD MCAD VACON 100 MR8 IP54 01 Dec, 2016 3.7 MB DXF
M-Drawing – MD MCAD VACON 100 MR8 IP54 01 Dec, 2016 3.9 MB DXF
M-Drawing – MD MCAD VACON 100 MR8 IP54 01 Dec, 2016 3.5 MB DXF
M-Drawing – MD MCAD VACON 100 MR8 IP54 01 Dec, 2016 271.5 KB PDF
M-Drawing – MD MCAD VACON 100 MR8 IP54 UL 01 Aug, 2018 429.8 KB ZIP
M-Drawing – MD MCAD VACON 100 MR9 IP00
M-Drawing – MD MCAD VACON 100 MR9 IP00 01 Dec, 2016 481.7 KB ZIP
M-Drawing – MD MCAD VACON 100 MR9 IP00 01 Dec, 2016 4.0 MB DXF
M-Drawing – MD MCAD VACON 100 MR9 IP00 01 Dec, 2016 6.3 MB DXF
M-Drawing – MD MCAD VACON 100 MR9 IP00 01 Dec, 2016 445.4 KB PDF
M-Drawing – MD MCAD VACON 100 MR9 IP54
M-Drawing – MD MCAD VACON 100 MR9 IP54 01 Dec, 2016 553.7 KB ZIP
M-Drawing – MD MCAD VACON 100 MR9 IP54 01 Dec, 2016 2.7 MB DXF
M-Drawing – MD MCAD VACON 100 MR9 IP54 01 Dec, 2016 2.1 MB DXF
M-Drawing – MD MCAD VACON 100 MR9 IP54 01 Dec, 2016 9.8 MB DXF
M-Drawing – MD MCAD VACON 100 MR9 IP54 01 Dec, 2016 1.4 MB PDF
M-Drawing – MD MCAD VACON 100 MR9 IP54 UL 01 Aug, 2018 553.0 KB ZIP

Software

Type Name Updated Version Status Download File type
FIELDBUS CONFIG FILES VACON® 100 BACnet/IP EDE 27 Jan, 2016 Released 4.0 KB ZIP
FIELDBUS CONFIG FILES VACON® 100 EtherNet/IP EDS 05 Nov, 2018 Released 38.6 KB ZIP
AC DRIVE FIRMWARE VACON® 100 FLOW Firmware 19 Oct, 2018 021 Released 7.2 MB ZIP
FIELDBUS CONFIG FILES VACON® 100 PROFINET IO GSDML 05 Nov, 2018 Released 58.4 KB ZIP
FIELDBUS CONFIG FILES VACON® 100 SIMATIC PDM PROFINET IO EDD 31 Jan, 2017 Released 111.2 KB ZIP
SOFTWARE TOOLS VACON® Live 25 Sep, 2017 1.1.17.0 Released 58.8 MB ZIP
FIELDBUS FIRMWARE VACON® OPT-C3/C5 PROFIBUS DP Firmware 07 Oct, 2015 018 Released 57.6 KB ZIP
FIELDBUS FIRMWARE VACON® OPT-C6 CANopen Firmware 21 Aug, 2017 026 Released 74.5 KB ZIP
FIELDBUS FIRMWARE VACON® OPT-C7 DeviceNet Firmware 18 Sep, 2012 012 Released 81.8 KB ZIP
