Description
General Information
-
- Extended Product Type: ES4-SF
-
- Product ID: 1SNK508960R0000
-
- EAN: 3472595089604
-

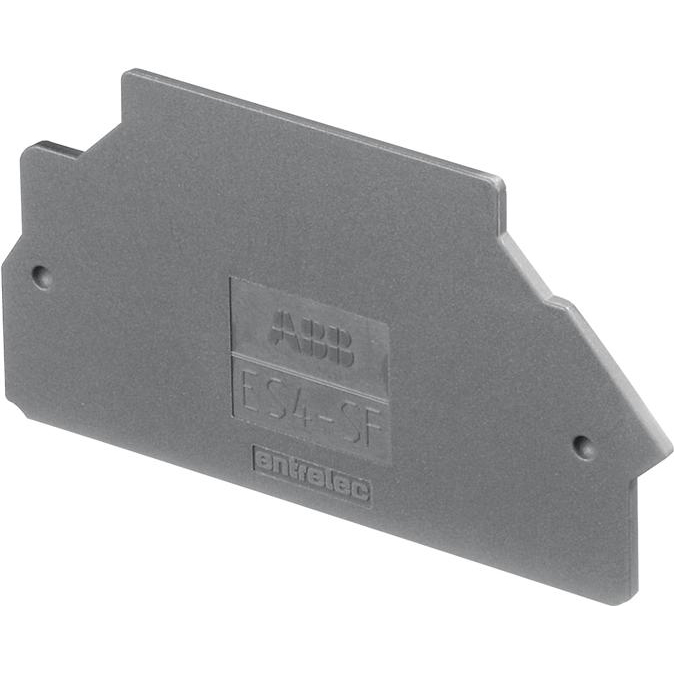

- Catalog Description: ES4-SF End Section – Dark Grey
-
- Long Description: Compatible with fuse ZS4-SF1… and disconnect screw clamp terminal blocks ZS4-S-R3.
Ordering
-
- Color: Dark Grey
-
- Minimum Order Quantity: 20 piece
Popular Downloads
-
- Data Sheet, Technical Information: 1SNK160019D0201
-
- Instructions and Manuals: 1SNK160027C0201
Dimensions
-
- Product Net Width: 1.5 mm
-
- Product Net Height: 59 mm
-
- Product Net Length: 59 mm
-
- Product Net Depth / Length: 31.9 mm
-
- Product Net Weight: 1.8 g
Technical
-
- Spacing: 1.5 mm
-
- Function: End Sections
-
- Pollution Degree: 3
-
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
-
- Insulation Material: Polyamide
-
- Mounting on DIN Rail:
- G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH15-5.5 (15 x 5.5 mm Mounting Rail) acc. to IEC 60715
-
- Suitable For:
- ZS4-R1
ZS4-SF1
ZS4-SF1-R
ZS4-SF1-T
ZS4-S-R3
Technical UL/CSA
-
- Flammability According to UL94: V0
Environmental
-
- Ambient Air Temperature:
- Operation -55 … +110 °C
Storage -55 … +110 °C
-
- Resistance to Vibrations acc. to IEC 60068-2-6: Compliant
-
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
-
- Environmental Information: 1SND220077E1000
-
- Instructions and Manuals: 1SNK160027C0201
-
- RoHS Information: 1SND230497F0203
Classifications
-
- Object Classification Code: X
-
- E-nummer: 2925145
-
- ETIM 4: EC000886 – Endplate and partition plate for terminal block
-
- ETIM 5: EC000886 – Endplate and partition plate for terminal block
-
- ETIM 6: EC000886 – Endplate and partition plate for terminal block
Container Information
-
- Package Level 1 Units: 20 piece
-
- Package Level 1 Width: 158 mm
-
- Package Level 1 Depth / Length: 243 mm
-
- Package Level 1 Gross Weight: 0.036 kg
-
- Package Level 1 EAN: 3472595089604
-
- Package Level 2 Units: 2000 piece
-
- Package Level 2 Gross Weight: 3.6 kg
-
- Product Packing Type: Bag
